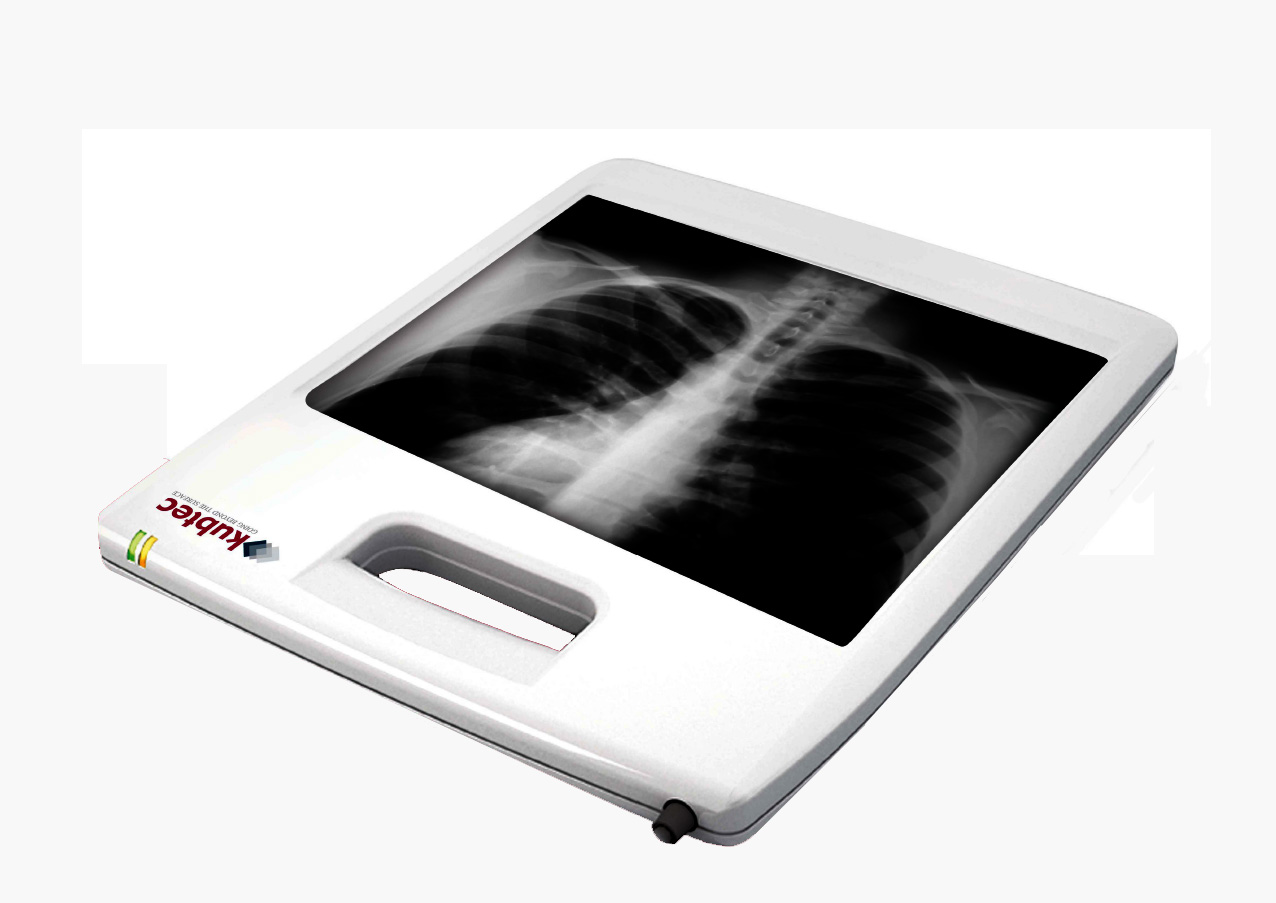

DIGIVIEW 250: Portable high-resolution detector for orthopaedics, forensics and general radiology
Available from KUB Technologies Inc
At 96um pixels, the DIGIVIEW 250 provides highest resolution images in the industry and the first CMOS x-ray panel of this size.
Designed for portable imaging applications, it is packaged in a custom-molded housing with a slim cassette and an integrated handle. A cable connects the DIGIVIEW to a laptop or PC via standard gigabit Ethernet or optional fiber-optic interface. Using less than 10W of power, the DIGIVIEW 250 runs off a standard AC power adapter or even a battery pack.
The active-pixel CMOS photodiode array at the core of the panel consists of over five million pixels. The panel’s low-noise, 14-bit output produces crisp images ideal for medical radiography applications. The highly sensitive detector acquires images at lower radiation levels.
Unlike "digital" CR systems, linear diode arrays or film, the DIGIVIEW 250 provides instant, unlimited digital images at 14 bit contrast resolution. The DIGIVIEW x-ray camera facilitates throughput through instant image acquisition, review and diagnosis. Labor and material costs are reduced through elimination of film and chemistry costs and biohazards.
• Size: 55 x 285 x 24 mm
• Weight: Less than 3 kg (7 lbs)
• Active Area: 192 x 246 mm
• Spatial Resolution: 96 µm pixel size (5.2 lp/mm)
• Contrast Resolution: 14 bit
• Sensitivity: 850 ADU/mR @ 35kVp, 1020 ADU/mR @ 50kVp
• Image Readout: 750 milliseconds
• Dynamic Range: 750 dB
• Interface: GigE Interface connects to laptop or PC
